ICT and FCT Tester
Universal testing and programming machine

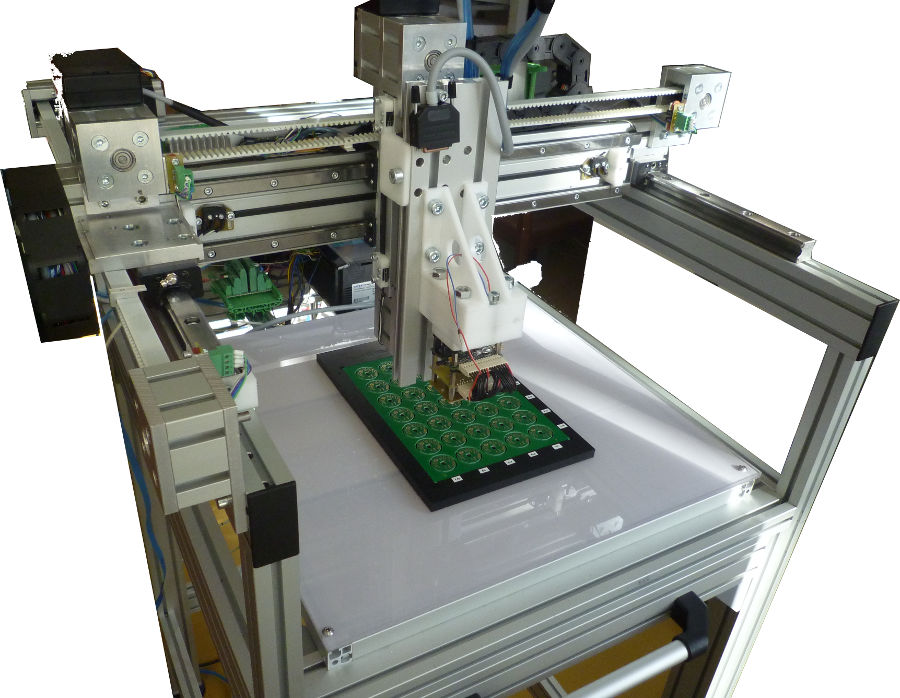

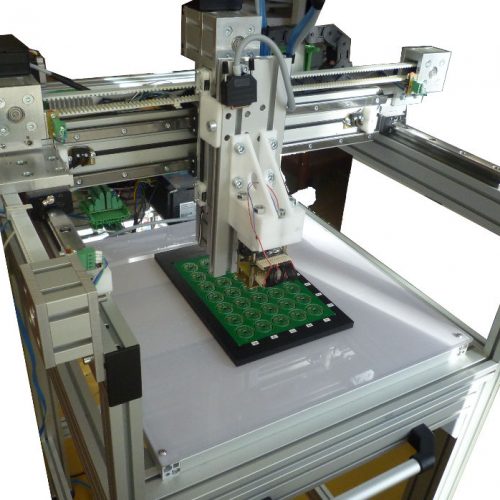

Universal testing and programming machine – UNISTROJ-2G was developed for programming processors and testing the functionality of assembled printed circuit boards. The whole concept of the machine is made so that it can be used for various types of printed circuit boards and quickly adjusted to customer requirements.
Our advantages are
- Individual adjustment of the machine
- Possibility of programming processors
- Possibility of testing PCB functionality
- Saving time for testing
The testing and programming machine can be equipped with a test head, vacuum pipettes and other accessories according to the customer’s specifications and needs. The machine utility runs on a PC with Windows 7 and higher.
ICT and FCT tester

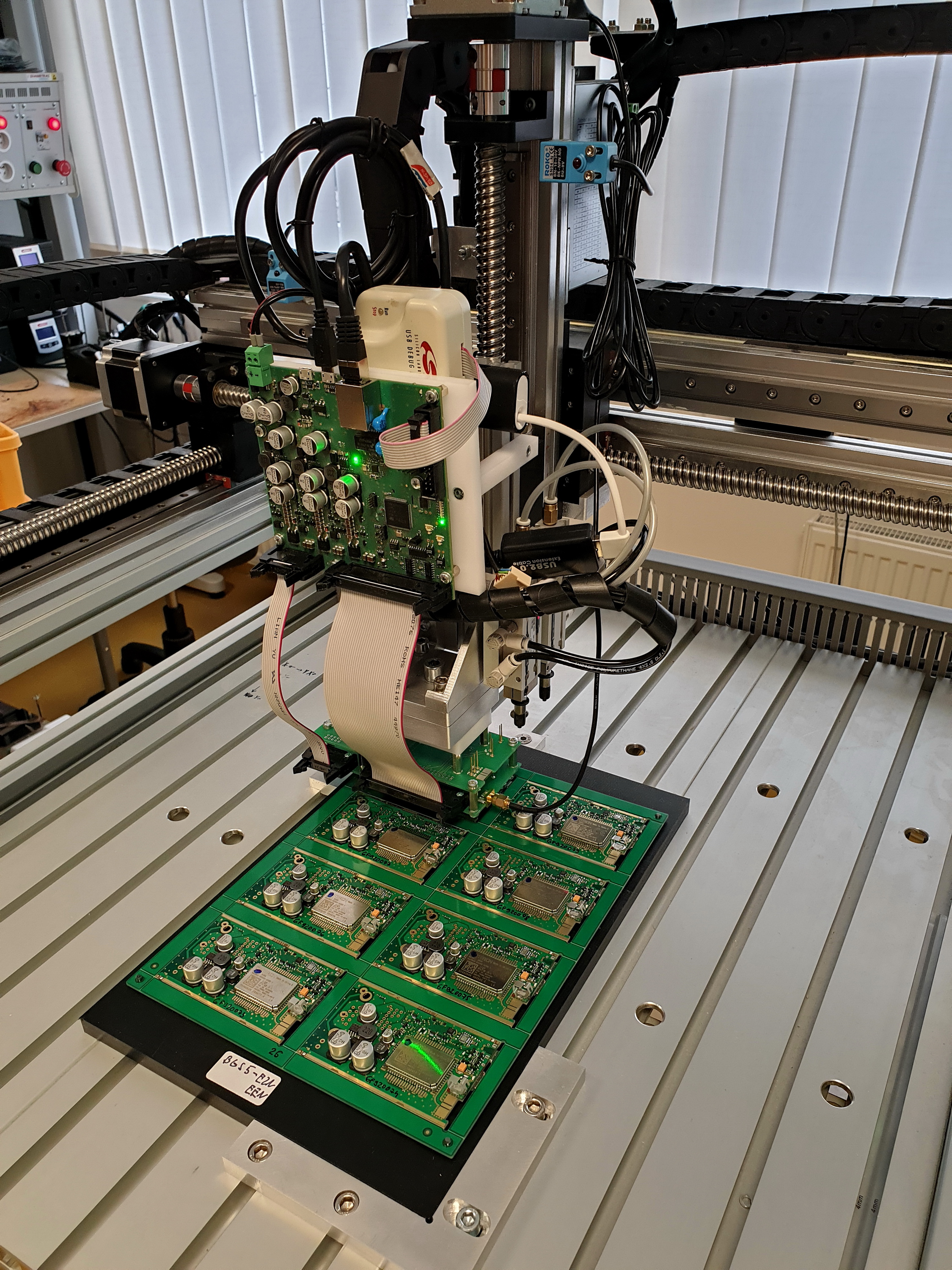

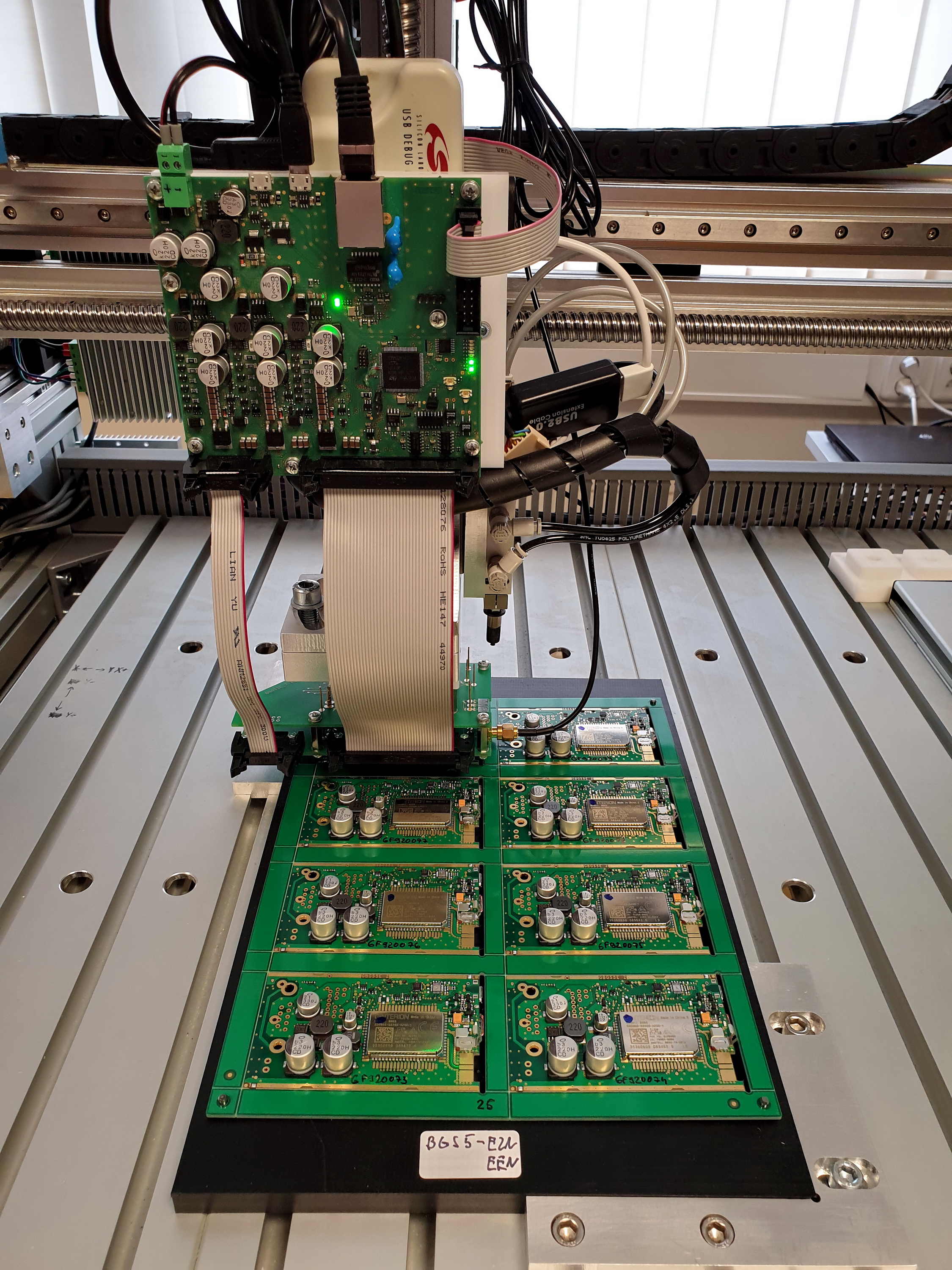

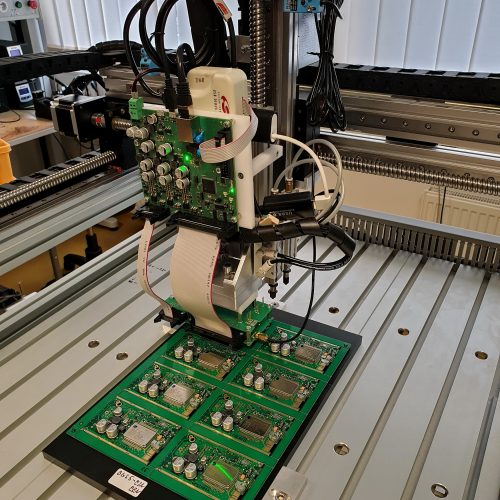

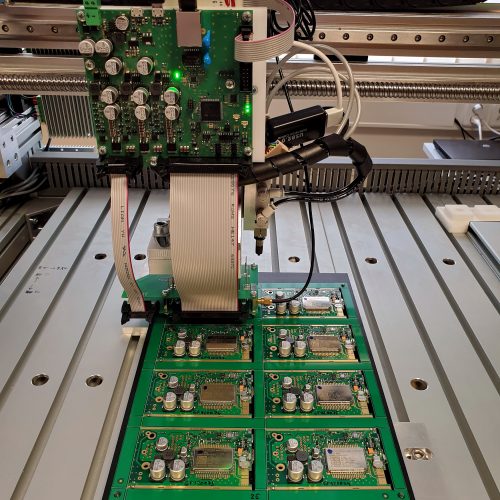

The basic variant has one test head with a vacuum pipette. The customer solution can be adjusted to your requirements.
Technical parameters
| Dimensions | 742 x 822 x 482 mm | ||
| Weight (without accessories) | 40 kg | ||
| Workspace | 420 x 410 x 90 mm | ||
| Fixing table | 492 x 492 mm | ||
| Repeatable accuracy | ± 0,04 mm | ||
| Power supply | 230V/50Hz | ||
| Communication with PC | Ethernet / Serial port | ||
| Control system | Fatek FBS-60MCJ2-AC | ||
| Â | |||
| Â | X | Y | Z |
| Motors | SX23-2727 | SX23-1414 | SX23-1414 |
| Steppers | S-STEPPER-TO45-1 | S-STEPPER-TO45-1 | S-STEPPER-TO45-1 |
| Microstep 1/16 | 0,1125º (0,01875 mm) | 0,1125º (0,01875 mm) | 0,1125º (0,01875 mm) |
| Recommended current for the motor | 2,5 A | 1,4 A | 1,4 A |
| Recommended speeds | 130-200 mm/s | 180-390 mm/s | 150-280 mm/s |
